RevealControl

RevealControl is a plugin for reveal.js that allows you to control your reveal.js slideshows from a remote device. It works by mirroring the current slide position on the controller device on the client device.

But Why?

Have you ever wanted to Tony Stark it on a stage with a tablet controlling your super 1337 slideshow? Have you ever wanted to absolutely flex those techlad muscles infront of management, clients, or stakeholders? Have you ever wanted to feel like an absolute hype-beast on stage?

If the answer to any of these is yes, then I assume you understand why I made this.

How does It Work?

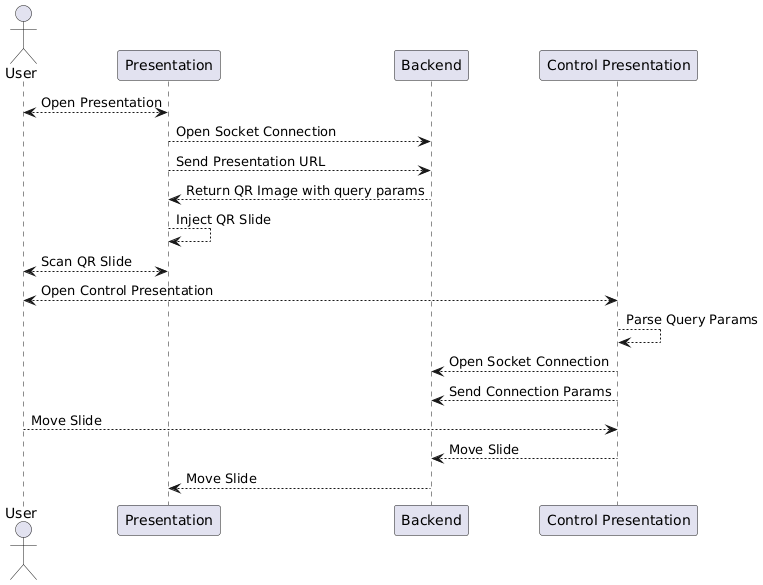

Effectively, We are setting up a connection to mirror all reveal.js actions done on the controller presentation on the client presentation. this allows us to control the client presentation without installing anything on the device or using a clicker.

Usage

Deploying a backend instance

The backend is built using javalin and docker. To deploy an instance, simply run

docker run -p 8080:8080 -d revealcontrol/backend:latest

the server runs on port 8080 inside docker, you can bind it to any other suitable port. Its also a good idea to use something like nginx for SSL termination.

There is also a public demo instance at reveal-control.kisoft.me, however, it is highly inadvisable to use it in production.

you can find specific versions of this image on docker hub

Using the reveal.js plugin

to use the reveal.js plugin, you need to either copy over the reveal-control.js file in the dist folder of the repository, or import it using jsdelivr like so

<script src="https://cdn.jsdelivr.net/gh/TareqK/reveal-control@master/dist/reveal-control.min.js"></script>

you can use specific images by changing the @master to @semver.release.version. You can find the releases page on Github

This will fetch the reveal.js plugin. Afterwards, you simply need to configure the plugin during your reveal.js init like so

Reveal.initialize({
            controls: true,
            progress: true,
            history: true,
            center: true,
            touch: true,
            transition: 'slide',
            hash: true,
            revealControl: {
                url: "ws://<your-server-and-port>/reveal-control"
            },
            plugins: [RevealHighlight, RevealMath.KaTeX, RevealNotes, RevealZoom, RevealControl]
        });

the revealControl config key is where all the relevant configuration is. For now, this is only the url property. When you open up a slideshow, a QR code/Connection slide is injected in the first slide. Simply scan the code or use the link below it to take control of the slideshow.
